scxmljs
@tinyactors/scxmljs is a correctness-first SCXML 1.0
interpreter for the ECMAScript data model. It runs directly on DOM elements, and comes with
custom elements that render running statecharts in any framework.
- Correct: all 160 automatic mandatory W3C conformance tests pass, with either data model.
- Two data models, one API:
- sandboxed (QuickJS compiled to WebAssembly, one context per session) for charts users write;
- trusted (the host's own JavaScript engine, about 15 KB gzipped) for charts you ship yourself.
- Built for visualisation: typed events, a playback clock that can pause and step, and a
view-model for the system, tree and focus views of a running chart.

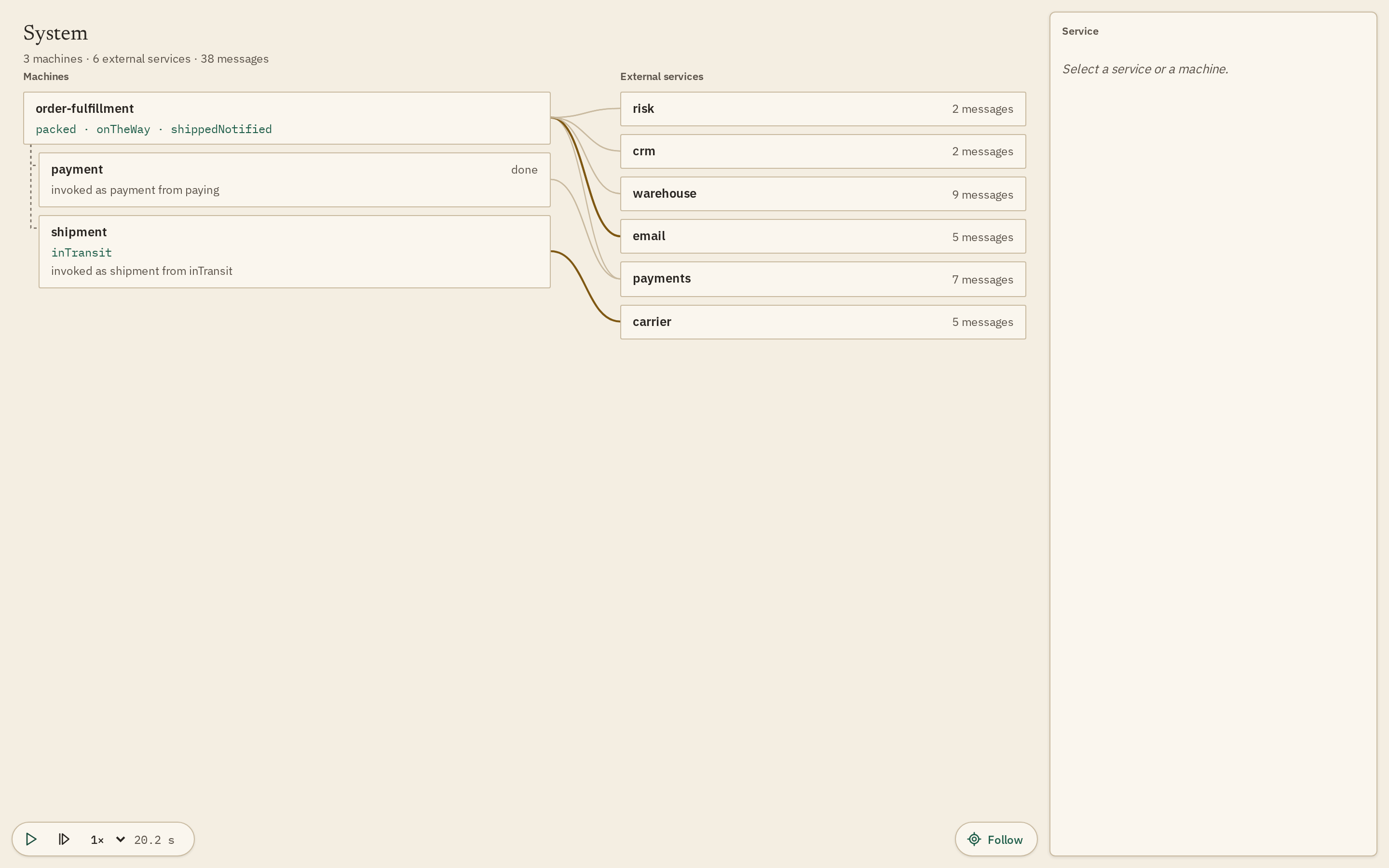

Full-resolution video (WebM, 2880×1800) · High-resolution screenshot (PNG) · the explorer with the optional Tinyactors theme
Docs & demos: https://scxmljs.tinyactors.dev: the guides, live demos, the API reference
and search. In the repository: the package README (also the npm page), the
guides, SECURITY.md and the changelog.
Repository layout
| Path | What |
|---|
packages/scxmljs/ | the library |
examples/playground/ | demo app: the explorer with sample systems, <scxml-view>, a GitHub-webhook example |
examples/frameworks/ | small React, Vue, Svelte and Angular apps using both elements |
conformance/ | the W3C SCXML conformance suite, vendored (ecma/), with its runner and fetcher |
tests/browser/ | Playwright tests (Chromium, Firefox, WebKit), including screenshot baselines |
docs/ | guides, reference and the examples they use |
bench/ | benchmark charts and recorded results (docs/measurements.md is generated from them) |
scripts/ | CI (scripts/ci), the release dry run (scripts/release), doc tests and link checks (scripts/docs/), size, coverage, benchmarks |
tools/typedoc/ | the API-reference generator, with its own TypeScript 5 (see docs/README.md) |
Running it
Requires mise and Bun.
bun install
mise run test # unit tests
mise run typecheck
mise run conformance # W3C suite, sandboxed data model (vendored: no network)
mise run conformance:trusted # W3C suite, trusted data model
mise run up # playground on http://localhost:4321 (mise run down to stop)
mise run docs:test # run every code sample in the docs
mise run docs:api # API reference into docs/api
scripts/ci # light checks (every push and pull request)
scripts/ci --full # + browsers, visual regression, framework apps, tarball (release preparation)
scripts/release # release dry run: checks, packs and verifies; never publishes
Contributions
This project doesn't accept outside contributions: pull requests and issues won't be
reviewed. You're welcome to fork it under the terms of the licence.
