masen

Generate standalone, CSS-themeable SVG maps from a region and a stylesheet.

No tile server, no fonts pipeline, no API key, no runtime model call. Same input, byte-identical output.

import { masen } from "masen-map";

const map = await masen({
  region: "west-europe",
  projection: "conic-conformal",
  highlight: ["FR", "DE", "BE"],
  title: "Rail freight volume, 2024",
});

await map.toFile("europe.svg", { theme: "minimal" });

Make a map without installing anything

→ danielefrisanco.github.io/masen

Twenty-six seconds of it being used — a region, a level of detail, neighbours, a different stylesheet, and a pin. No narration. Sharper as MP4 or WebM, and there is a still for the places that show a card rather than play a video. All four are made by npm run demo, which drives the deployed page — so they are remade when the interface moves rather than left to go quietly out of date.

Or see what it draws first: the gallery — every committed snapshot on one page, sixty-two of them, which is faster than reading any of what follows.

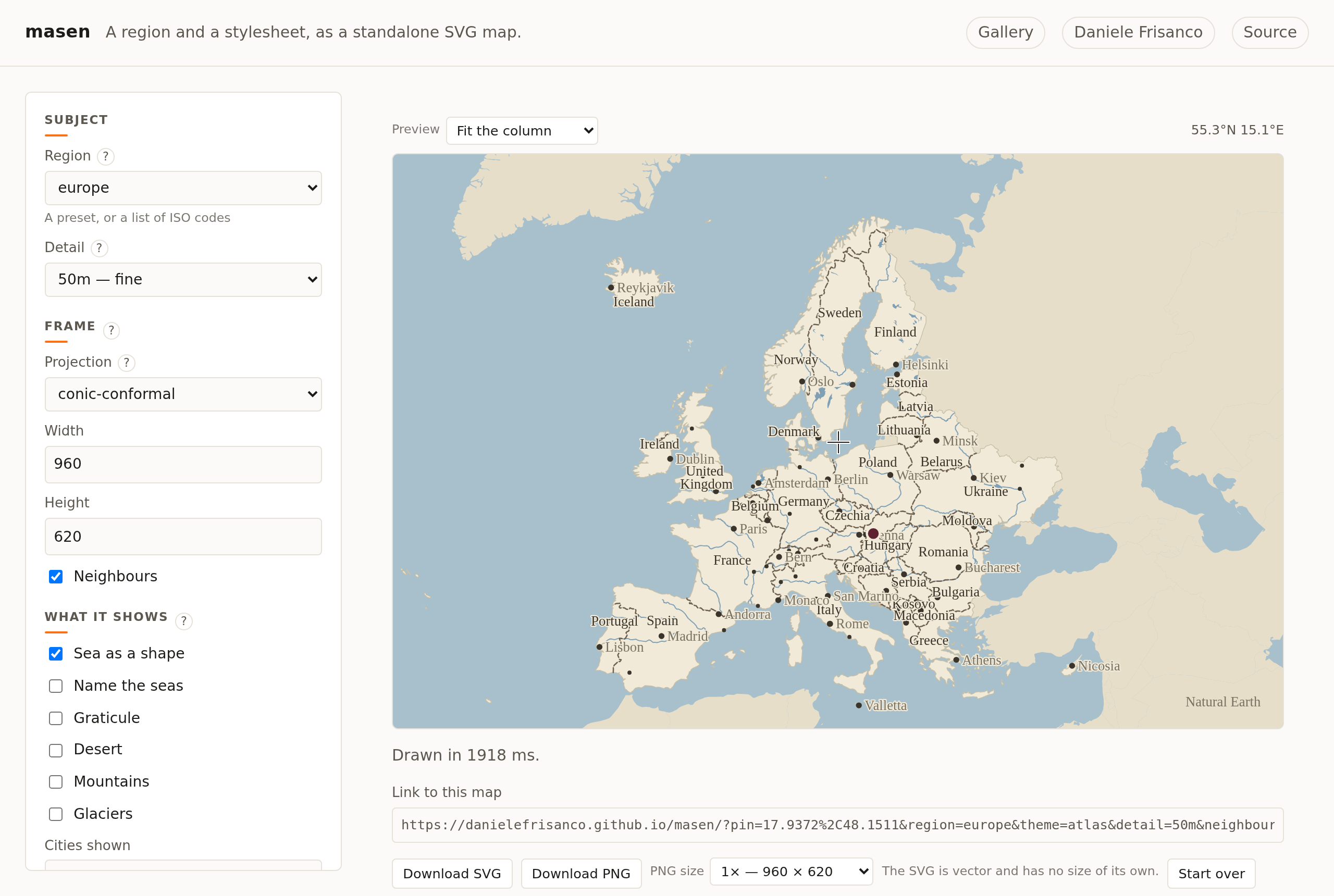

A page over this library: pick a region, a projection, a theme, the layers you want, and it draws. Everything runs in your browser — the geometry, the stylesheet, the file — so there is no server, no account and nothing sent anywhere.

The whole configuration lives in the address bar, so a map you made is a link you can send and the link rebuilds it exactly:

…/masen/?region=GR,TR,BG&projection=mercator&theme=atlas&detail=50m&seaNames=1

Only what you changed is written down, so a fresh page has a clean URL.

The map is also something you click. Choose a gesture and point at it: one click drops a pin, two draw an arrow, a sequence traces a route, and a click on a country highlights it. Every mark is stored as a longitude and a latitude rather than as a pixel, so changing the projection, the region or the canvas size moves the map underneath the marks and leaves them exactly where you put them — and they travel in the link with everything else.

Take it away as a file. SVG, which is the better format for anyone who will restyle it later, or PNG at up to four times the canvas — a map re-renders at any size because it is geometry rather than pixels, so a preview in a browser column and a poster at 4000 pixels are the same document twice. The PNG is rasterised by the browser itself, from the flattened form: there is no server-side rasteriser here and no dependency on one.

Run it locally with npm run tool:dev; npm run tool:build produces the static site, and a GitHub Action deploys it from main. The tool is a thin form over MapOptions and nothing more, which is possible only because no option in this library is a callback — a UI can build the entire configuration as data and hand it over.

Status

Early, but complete enough to use, and on npm. Phases 0–10b, 13, 15 and 16 are done, and 17 — weather — has begun with a pressure chart: the library, and a tool over it where you pick a region, a projection and a theme, click the map to mark it, and take the result away as a file. The package builds under both ESM and CJS, resolves real geometry, emits the frozen document shape below, themes it, and carries lakes, rivers, cities, names, the sea, land cover, a graticule, four kinds of annotation and isobars.

npm i masen-map

Unscoped, and not by choice. npm's similarity filter refuses the bare name masen — too close to base, case and raven — and the masen organisation is held by an account with no packages, so @masen/map was not available either. Hence masen-map. Everywhere else the project is simply masen: the repository, the site and the mp- class prefix are unchanged. The price of a prefix rather than a scope is worth stating — a scope owns its family, a prefix only asks politely, so masen-themes and masen-data-50m are ordinary names anyone can take.

0.x is doing real work here. The class taxonomy below is what a 1.0.0 would be promising to hold still, and it has not been in enough hands yet to know which of its names are wrong. Being on npm before that promise is how it gets into those hands; the version number is the disclaimer.

Twelve of the thirteen layer slots carry something. Roads is the last one still empty, and it is waiting on data rather than on code: of the roads Natural Earth publishes, 1.7% of Africa's road length carries a classification, so the layer would be a lie outside two continents. A legend is deferred to v2. The build plan says when each arrives and what it is waiting on.

The class taxonomy

The real public API is the shape of the document, not the function signature. Every theme anyone writes is a set of selectors against these names, so they are versioned like a function signature and change only on a major.

The root is <svg class="mp"> — mp for map, not for the library, which is why the prefix survived the rename from mapper and will survive the next one.

Inside it, a .mp-bg rectangle covers the canvas, then thirteen layer groups in fixed paint order, bottom to top. Every slot is emitted on every map, empty or not: inserting one later would restack everything above it and break themes in the wild.

Layer group	Feature class	Data attributes	Carries
.mp-ocean	.mp-sea	—	The sea as a shape, under everything
.mp-graticule	.mp-grid	data-kind	Parallels, meridians, the equator and tropics
.mp-neighbours	.mp-neighbour	data-iso, data-name	Surrounding countries drawn as context
.mp-land	.mp-country	data-iso, data-name, data-unseen	Filled land polygons, one node per country, largest first
.mp-terrain	.mp-cover	data-kind	Desert, mountain and glacier, tinted over the land
.mp-hydro	.mp-water	data-kind	Lakes and rivers, drawn over the land
.mp-borders	.mp-border, .mp-hatch	data-kind, data-name	Shared boundaries, each drawn once, over the hatched overlays they qualify
.mp-roads	.mp-road	data-kind	Reserved · motorway, trunk, primary
.mp-weather	.mp-isobar, .mp-pressure-band, .mp-wind	data-value, data-kind, data-depth, data-from, data-to, data-speed	Isobars, the tint between them and the wind, over the ground and under the names
.mp-places	.mp-place	data-name, data-iso, data-rank, data-pop	Settlement dots, ranked 1–3
.mp-labels

.is-highlighted is a modifier on any feature named in highlight. A pin is a .mp-anno.mp-pin group holding a .mp-pin-mark circle and, where it has one, a .mp-label carrying data-kind="pin". A callout is a .mp-anno.mp-callout group holding a .mp-callout-leader path, a .mp-callout-box rect and a .mp-label carrying data-kind="callout". An arrow is a .mp-anno.mp-arrow group holding one .mp-arrow-line path, with its head drawn by a .mp-arrow-head marker in the defs block. A pin whose kind names an icon also carries a .mp-icon group, tagged data-icon. .mp-watermark, .mp-scale and .mp-compass are emitted when asked for — though the scale bar and the north arrow only when the frame's measured distortion earns them, so asking is not the same as getting. .mp-legend is claimed and not yet emitted.

.mp-hatch is the overlay for the thing that is not a quantity — disputed, claimed, excluded. It is drawn over the land rather than in place of it, so two readings stack: stripe hatches whole countries and its paths carry data-iso, while contested areas carry data-kind and data-name. The stroke comes from .mp-hatch-line inside the pattern, so a theme restyles the hatch by styling that.

It lives in .mp-borders rather than in .mp-land, which is a placement worth knowing if you write a theme. In the land layer it painted below land cover, so on any map with terrain on the hatching was in the document, carried its pattern fill, and could not be seen at any zoom. In the borders layer the cover is already down and the boundary lines draw on top of the hatch, which is the right stack: a contested-area hatch is a statement about a boundary, and the line has to stay legible over its own hatching.

Every layer but the last is geographic — its contents move when the projection or region changes. .mp-furniture is the exception: a credit line or watermark is placed on the canvas in fixed user units and must not shift when the camera does, which is why it is a layer of its own and sits above everything else.

.mp-bg and the .mp-borders group ship with fill="none". That is structural, not stylistic: SVG's default fill is black, so a full-canvas rectangle or a line path with no theme applied would render as a black square and a filled blob. Presentation attributes have zero specificity, so any theme rule overrides them.

Every layer group carries mp-layer alongside its own class, and every one is emitted even when empty. That is deliberate: inserting a layer later would restack everything beneath it and break themes already in the wild. Empty slots cost about thirty bytes and buy a stable stack for the life of v1.

The taxonomy is also readable at runtime, so tooling never has to hard-code it:

import { LAYERS } from "masen-map";

LAYERS.map((layer) => layer.className);
// ["mp-neighbours", "mp-land", "mp-hydro", "mp-borders", ...]

Borders are meshed, not outlined

.mp-border comes from the shared arcs between countries, so the France–Germany boundary is one line rather than two stacked on top of each other. Coastlines are excluded — they are already the silhouette of the land layer. This matters the moment a theme makes borders translucent or dashed, where doubled lines render visibly wrong.

The group carries fill="none" as a presentation attribute, because a line path with the SVG default fill renders as a filled blob.

A note on non-browser renderers

Browsers follow the spec: presentation attributes have zero specificity, so .mp-bg { fill: … } in a theme overrides the built-in fill="none". Verified in Chromium.

Some non-browser renderers get this backwards and let the attribute win — ImageMagick's built-in MSVG renderer is one. A map themed with a <style> block will show an unpainted background there. This is the same class of problem as design tools that ignore <style> entirely, and it is what the planned inlineStyles render option exists to solve, by flattening computed values onto presentation attributes before writing the file.

Accessibility

The root carries role="img" with an aria-label and a matching <title>. Each country also carries its own <title>, which browsers show on hover; because the root is role="img", assistive technology reads the one label instead of announcing two hundred paths.

The generated label describes the geography ("Map of Western Europe, highlighting France and Belgium"). Pass title to say what the map is actually about — a map of election results is not "a map of Western Europe".

Theming

Three inputs, applied in cascade order. There is no merge step, no schema and no validation layer, because the cascade already does that work.

const map = await masen({
  region: "west-europe",
  theme: "atlas",              // structure: weights, dashes, type
  palette: "dusk",             // colour only, applied over the theme
  tokens: { accent: "#C2482F" } // final say
});

map.css              // the resolved stylesheet, scoped
map.svg              // geometry only — pair it with map.css yourself
map.toString()       // complete, styled by its <style> block — for embedding
await map.render()   // complete and portable — renders without CSS support
await map.toFile(p)  // render(), written to disk

map.project([lon, lat]) // a coordinate as a point on the canvas
map.invert([x, y])      // a point on the canvas as a coordinate

Regions

Twenty-eight presets, each a saved list of ISO codes — "west-europe" expands to exactly what you could have written by hand, which is why they are explicit rather than derived from a continent field the topology does not carry.

REGION_PRESET_NAMES has one more entry than REGION_PRESETS has lists, and always will: "world" means every feature, which is not the same as a list of all of them and cannot be written as one. Use expandPreset, which is total over the names and answers null for that case, rather than indexing the record.

A preset includes the enclaves of its own members. west-europe carries Andorra, Monaco, Liechtenstein, San Marino and the Vatican, because Spain, France, Switzerland, Austria and Italy are all in it — and leaving a microstate out of a preset does not leave it out, it leaves a hole in the middle of the drawn land with the sea showing through.

Whole world	world
Europe	europe, west-europe, east-europe, nordics, balkans, mediterranean
Americas	north-america, central-america, caribbean, south-america
Africa	africa, north-africa, west-africa, east-africa, southern-africa
Asia	asia, middle-east, central-asia, south-asia, southeast-asia, east-asia
Elsewhere	oceania, pacific, antarctica

They overlap on purpose. Turkey is in europe, balkans, middle-east and asia; Egypt is in africa, north-africa and middle-east. A region is a frame somebody wants, not a partition of the planet — and every one of these is an editorial choice with a defensible alternative, which is why they are written down in one visible place rather than inferred.

Anything not covered is a list of codes: region: ["CH", "AT", "SI"]. To build a picker over them, countryTable() returns every country the data can draw with its name:

const countries = await countryTable("110m");   // [{ code: "AF", name: "Afghanistan" }, …]

The tier is part of the question rather than a detail — the two tiers do not hold the same countries, 177 at 110m against 241 at 50m, because the coarse one drops the small ones. isoTable() answers a different question and carries no names: it is the code-to-numeric-id map the topology is keyed by.

The presets

Theme
minimal	Flat fills, hairline edges, no ocean — for a page with a ground of its own
atlas	Printed-atlas paper on a cold sea, dashed boundaries, serif
noir	Dark ground, slate land, fine linework, one warm accent
blueprint	White linework on drafting blue, monospaced, dashed boundaries
contrast	Black and white sized for legibility — heavy strokes, no muted ink

Palettes are colour only, and restyle any theme without touching a weight, a dash or the type:

Palette
sand	Warm paper and a deep green accent
slate	Cool neutral grey, one cold blue — the register of a report
moss	Warm greens on stone, the colouring of a walking map
patina	Editorial plates — brick and ochre on a deep teal sea, near-black linework
dusk	Night blues, for a dark page

Every preset keeps its coastlines findable

There is a floor under how close two colours a map puts side by side may be, and it is enforced by a test rather than by taste.

It exists because the preset tests only ever asked whether a token resolves. Every one of them passed on a sand map where --land-edge was the background colour exactly and the lightest band was four points off it — so a pale country on a coast had neither a fill nor an outline dividing it from the sea, and Eritrea was simply not there. Nothing was undefined. Nothing threw.

The rule is compound, because that is the shape of the failure: a country reads against the water if either its own fill differs from the sea or the line drawn round it does. So a pale choropleth band is legal on a theme with a real coastline and illegal on one without.

The measure is perceptual difference, not a WCAG contrast ratio. The ratio was tried first and rejected by measurement — it scores atlas a failing 1.04, because atlas draws a warm tan coast on a cold blue sea at almost identical lightness, and that coast is unmistakable. WCAG cannot see hue, and half the cartography here is hue.

If you write your own theme and it puts a country within ΔE 10 of the sea, this test will say so and name the token.

The typefaces

Type is a category you pick, the same way colour is:

await masen({ region: "west-europe", theme: "atlas", typeface: "serif" });

humanist	The system UI face. Even colour, no affect — the default voice
serif	A book face with a little tracking; the printed-atlas register
grotesk	Swiss signage: neutral, tight, slightly heavy
condensed	Narrow. Reach for this on a crowded map — more names fit
mono	Even widths, for maps that sit beside figures

A typeface carries only type tokens, exactly as a palette carries only colour, so the two are chosen independently and neither can fight the theme over structure. Sizes travel with the stack because they have to — a serif needs a fraction more room than a grotesk.

Only stacks already on the machine. A map is a standalone file with no network, so a webfont would arrive as a request the document cannot make.

One of the tokens a typeface sets is not a style at all. --label-advance is how wide the face runs, as a fraction of the size — the fit test has no font metrics, and the only thing that knows the answer is the stylesheet that chose the face. condensed declares 0.46 where humanist declares 0.58, and that is precisely why more names fit.

Dark mode

Every preset ships a @media (prefers-color-scheme: dark) block, so a map dropped into a page follows the reader's system. Because tokens are role-named it is a value swap and nothing structural.

An explicit palette still wins — it is applied after the theme, so the cascade settles it. Asking for sand gets sand whatever the system is set to; automatic dark is the default, never an override.

One consequence worth knowing: render() flattens the theme onto presentation attributes, and a media query cannot be flattened — whether it applies is not known until someone looks at it. So the flattened attributes carry the light values and the stylesheet still ships alongside. A browser honours the dark block; a design tool gets the light map.

Two output forms, for two different readers

toString() is styled by its stylesheet alone. That is the right form to embed in a page: the browser applies the <style> block, and the file stays small.

render() and toFile() flatten the theme onto presentation attributes by default, because a file gets opened by whatever the reader happens to have — a design tool, a file-manager thumbnailer, an editor preview — and many of those ignore <style> entirely, which renders a themed map as black shapes. The stylesheet still ships inside, so a browser honours the CSS and everything else honours the attributes. Both resolve to the same paint.

Pass inlineStyles: false for the smallest possible file when you know the target understands stylesheets.

A theme carries structure; a palette carries only colour. That split is the point: both a newsroom and a company want to keep a style and change its colours, not rewrite it. Because tokens are named by role, a palette is a set of token values — so recolouring costs nothing to implement.

Bundled themes are minimal and atlas; bundled palettes are dusk and sand. Any of them can instead be a path to a .css file or a stylesheet passed inline. The files ship too, for linking or forking:

import "masen/themes/atlas.css";

Tokens

Named by role, never by appearance. --ink, never --dark-gray — the second is a lie the moment someone writes a dark theme, and renaming it later breaks every theme in the wild.

Token	Controls
--bg	Canvas ground — the ocean, or transparent
--land / --land-edge / --land-edge-width	Country fill and outline
--border / --border-width / --border-dash	Shared boundaries
--accent / --accent-edge	Anything highlighted
--bin-1 … --bin-5	Bands of a classified value
--fill-1 … --fill-6	Political fill
--stripe / --stripe-width	Diagonal hatching
--prism-side / --accent-side	Walls of a raised country
--water / --water-width	Lakes and rivers
--place	Settlement dots
--neighbour	Context countries
--anno	The mark a pin is drawn with, and a callout's box and leader
--anno-ink	Ink on an annotation: a callout's caption, a pin's icon
--pressure-low / --pressure-high	A low's L and a high's H, and the tint around each
--furniture-ink	Text and marks on the canvas — a credit, a watermark, a scale bar, a north arrow
--ink / --ink-muted	Country names / settlement names
--font / --label-size / --place-label-size	Type
--label-halo / --label-halo-width	The casing drawn behind label text
--road --anno --anno-ink --furniture-ink	Reserved — set them now, they start working when their layer lands

Every bundled theme defines every live token, and a test holds it: a theme that misses one leaves a map wearing another theme's colour in that one place.

Two of these encode a rule rather than a preference. --prism-side has to be darker than any band that can sit on top of it — a pale wall under a dark top inverts the light source and a prism map turns to mud. And --accent-side exists because the obvious filter: brightness() is a CSS filter function that SVG 1.1 does not accept, so every viewer ignoring stylesheets drew the wall in the top's colour and flattened the prism into a silhouette.

Styles are scoped to one map

A <style> block inside inline SVG is not scoped to that SVG — it applies to the whole host page. Two differently themed maps on a page would overwrite each other, and a map would restyle anything sharing a class name.

So every rule is scoped to a class derived from a hash of the stylesheet itself: .mp.mp-t-k3f9a1z .mp-country. Deterministic, so the same theme always produces the same class and output stays byte-identical; distinct, so two themes cannot collide.

So are the ids

Stylesheets have been scoped to a hash of themselves since the beginning, which made it look as though two maps could already share a page. They could not. An url(#…) resolves against the whole document, and the SVG ids were constants — so with two maps on one page, every url(#mp-land-clip) found whichever map the parser reached first, and one map's rivers were clipped to the other's coastline, with nothing in either file to say so.

Every id a map emits now carries a hash of that map:

<clipPath id="mp-land-clip-1y4m1b6">   <pattern id="mp-stripe-1y4m1b6">

The name you write does not change. A theme still says filter: url(#mp-relief) and fill: url(#mp-stripe), which is what the docs above promise and what every stylesheet already says. Only the emitted pair moves, and it moves together: the id on the definition and the reference in the css shipped beside it. An id you invented yourself is left exactly as written — only the mp- names are namespaced.

The hash is derived, never counted, because the same input has to give the same output: a counter would make a map's bytes depend on how many maps were built before it. Two maps that agree on theme, canvas, projection, detail and subject get the same scope, which is correct — they are the same map, and a page holding it twice is holding one document twice.

How flattening works

inlineStyles resolves the cascade and writes the computed paint onto each element as presentation attributes. It is not a CSS engine. It handles class selectors and descendant combinators, which is what the bundled themes use and what the authoring convention asks for. Selectors beyond that are skipped rather than half-applied.

Framing, and why nothing goes missing

A country's geometry includes everything it governs: France reaches to French Guiana, the United States to Alaska and Hawaii. Fitting a camera to that frames an ocean.

So the camera is fitted to each country's core — anchored on its largest piece and scaled by that core's own extent — and then everything is drawn. Guyane is still in a map of France; it simply falls outside the viewport, the way a paper atlas handles it. Continental France, the lower 48 and mainland Portugal frame correctly, while Sicily, Sardinia, Indonesia's archipelago and New Zealand's two islands all stay whole, and a world map shows every last one of them.

Coordinates and pixels

const map = await masen({ region: "west-europe" });

const paris = map.project([2.35, 48.86]); // → [x, y], or null
const ground = map.invert([500, 500]);    // → [lon, lat], or null

project() is how anything gets placed by hand: you know where the thing happened, and you want the point on the canvas to draw it at.

invert() runs the other way, and it exists for the case where the pixel comes first — a drag, a click, a drop. Store the coordinate, never the pixel. A pixel is only meaningful for the exact region, projection and canvas size that produced it; the same map at another size, or reframed to a wider region, puts that pixel somewhere else entirely. A coordinate stays on the same ground forever.

Both return null when there is no answer. For invert() that means the pixel is not on the map at all — the corners of a canvas fall outside an orthographic globe, and those corners are nowhere, not somewhere. It is worth checking: d3 clamps its inverse trigonometry rather than failing, so the raw projection would answer a corner with a coordinate on the limb, and a pin dropped off the edge of the world would come to rest in the Atlantic.

On a globe the far hemisphere projects onto the same disc, so one pixel names two coordinates. invert() returns the one facing the reader.

Relief without data

.mp .mp-land { filter: url(#mp-relief); }

mp-relief and mp-relief-soft are built in. A stylesheet cannot create SVG elements, so a theme names the effect and the definition is written into the reserved <defs> — only when referenced. FILTER_NAMES lists what is available.

They are lighting filters, not shadows. A shadow separates a shape from its ground; relief needs a lit face and an unlit one, so the land's own alpha is blurred into a height map and lit from the north-west. The light is multiplied rather than added, which keeps the theme's colour instead of bleaching it white.

No elevation model, no raster, no data. Worth separating from terrain, which is a data problem — glaciers, salt flats and depth bands are real vectors, but land contour lines would have to be derived from an elevation model. See west-europe-relief.svg in the gallery.

Colour by value

await masen({
  region: "west-europe",
  values: { DE: 4460, FR: 3050, IT: 2250, ES: 1620, PT: 290 },
  bins: 5,
});

Each country is classified into a band and marked data-bin="4", which the theme colours from --bin-1 … --bin-5. The library never picks the colour.

Bands are by rank, not equal value intervals — map data is usually skewed enough that five equal slices of European GDP put Germany alone in the top band and everything else in the bottom one.

values defaults to whatever extrude was given, so one set of numbers can drive height and colour at once.

A highlight beats a band. .mp-country.is-highlighted and .mp-country[data-bin="3"] have identical specificity, so the one written last wins — and highlight is the caller naming a country outright, where a band is a number it happened to fall into.

Colour without data

await masen({ region: "africa", fill: "political" });

Every country gets a colour none of its neighbours has, written out as data-fill for the theme to resolve from --fill-1 … --fill-6. The oldest convention in map-making, and the sensible default for a map with nothing to encode.

It costs almost nothing: the border mesh already visits every shared arc to find the boundaries, so the adjacency graph comes out of the same pass. Four colours suffice for Europe and five for the world — six exist because a real country graph is not quite the planar one the four-colour theorem is about.

Political fill defers to a band. A country carrying a number is already saying something with its colour, and two encodings on one fill is one of them lying.

Hatching

await masen({
  region: "europe",
  highlight: [...members],
  stripe: ["AL", "BA", "MD", "ME", "MK", "RS", "UA"],
});

For the thing a map has to say about a country that is not a quantity — disputed, claimed, excluded, no data. It is an overlay rather than a fill, so a hatched country keeps whatever colour it already had and the two readings stack.

The pattern lives in <defs> and the line inside it carries a class, so a theme styles it like everything else. It has to be a class: currentColor inside a pattern resolves where the pattern sits, in the defs block, not where it is used.

Height as quantity

await masen({
  region: "west-europe",
  extrude: { values: { DE: 4460, FR: 3050, IT: 2250, ES: 1620 }, height: 150 },
});

Each country is raised in proportion to its value — a prism map. Values are raw (GDP here, or headcount, or anything else) and scaled against the largest, so you never have to think in SVG units. extrude: 40 lifts everything uniformly instead, and extrude: { values: { IT: 1 } } raises a single country off the rest.

Each country becomes .mp-prism wrapping .mp-prism-side and .mp-prism-top, with data-height alongside the usual attributes. .is-highlighted works on a prism exactly as on a flat country. See europe-gdp-prism.svg and italy-raised.svg in the gallery.

Nothing about this is a raster trick: the solid is built by sweeping the projected outline upward, so it stays vector, themeable and diffable.

Projections face their region

A projection is centred on its region's meridian before being fitted to the canvas — fitExtent solves scale and position but never rotation, so without this a map of Asia is drawn from the far edge of a Greenwich-centred projection and arrives sheared.

Only the central meridian moves for the cylindrical and pseudocylindrical projections; tilting one off the equator gives an oblique aspect, which is a deliberate choice rather than a default. orthographic turns in both axes, because a globe has no other way to look at a place.

Past a 180° span the region is effectively the world, and rotating stops being a service — so a world map keeps the Atlantic in the middle, where readers expect it.

Regions that cross the antimeridian are handled with the wrap: Oceania reports as 113°E to -180°E, and averaging those two numbers would centre the map on the opposite side of the planet.

antarctica is the exception that proves this section: a pole is a line rather than a point in any cylindrical projection, so it smears across the bottom of the map. Draw it orthographic.

The sea, as a shape

await masen({ region: ["HR"], sea: true, palette: "sand" });

Without this, --bg paints the whole canvas and the land is drawn over it — so blue has never meant water, it has meant nothing was drawn here. Those are the same thing only when your region has coastline all the way round.

They come apart the moment the frame holds land you did not ask for. A map of Croatia painted Bosnia the same colour as the Adriatic. A map of Italy painted Austria as sea. A map of Switzerland put the whole of central Europe underwater.

sea: true draws the real ocean polygon into .mp-ocean, the bottom layer, filled from --sea. Land the map is not drawing stays as the canvas ground instead of pretending to be water.

It shows only where --bg is not already your ocean. sand, slate, moss and minimal have a paper ground, so their --sea is a different colour and the layer changes what you see. atlas, noir, blueprint, dusk and patina set --sea to their background exactly, so turning it on cannot change a coastal map that was already right — override --bg if you want the two to differ.

The geometry is read from a file of its own, only when this is on: it is one polygon with a hole for every continent, and half again the size of the rest of the bundle. It is clipped to the canvas before it is drawn, so an inland frame emits nothing at all rather than a megabyte of coastline nobody can see.

Ground that is desert where it is desert

await masen({ region: ["DZ", "LY", "EG", "TD", "NE"], terrain: true });
await masen({ region: ["CH", "IT", "AT"], terrain: ["mountain"] });

Three kinds of land cover — desert, mountain, glacier — drawn into .mp-terrain, over the land they tint and under the water, each shape carrying data-kind and coloured from --desert, --mountain and --glacier. true draws all three; a list draws only what it names, which is how a map of the Alps gets its mountains without the Sahara arriving alongside them.

There is no forest, and that is the honest half of the feature. Natural Earth publishes no forest polygon at any tier — land cover of that kind lives in rasters — and deriving one from a climate band would make this the only layer in the library that invents its subject. --forest stays a reserved token against the day a source exists.

The classification is Natural Earth's own, recovered rather than guessed. geography_regions_polys is the source, and it ships the FEATURECLA column populated at 10m only: at 50m and 110m every feature has it blank, so those files are a list of named shapes with no way to tell the Sahara from Scandinavia. NE_ID is stable across tiers, so the build joins the 10m table onto the coarser geometry — 60 of 60 features at 110m, 522 of 522 at 50m, and the ingest script throws rather than shipping an unclassed blob.

Cover is clipped to the land the map actually drew, for the reason rivers are: a cover polygon is a climate band drawn to a coarse outline, so it runs out over the sea wherever the coast is finer than the band, and glaciated areas genuinely extend onto floating ice. It is read from a file of its own, only when this is on.

The names of seas

await masen({ region: ["GR"], sea: true, seaNames: 3 });

Seas, gulfs, straits and bights, set in italic on the water in --sea-ink, into the same .mp-labels layer country and city names use — data-kind="sea", with data-sea naming which kind of water it is.

The rule, which you can check: a sea is named when its middle is on the map. The anchor is the point furthest from that sea's own shore, computed once at build time, because a centroid is not good enough for the shapes worth naming — the Mediterranean's falls over Sicily. The polygon is then discarded, which is what keeps a hundred and eighteen names down to 7 KB. The cost of that trade is worth knowing before you turn it on: a map framed on a sliver of a sea whose middle lies elsewhere does not get that sea's name.

seaNames takes a rank, the way labelRank does — 1 is the oceans and the great seas, 2 adds the named basins, 3 adds the straits and bights. true means 2. Sea names are judged last in the collision pass, so they give way to every name on land: the land is the subject, and a name on the water is the one that can be spared.

The grid the world is drawn on

await masen({ region: "south-america", graticule: true });
await masen({ region: "world", graticule: { step: 15 } });

Parallels and meridians, at the bottom of the stack under everything else.

The spacing is chosen from the region unless you name one: roughly six lines across the span, snapped to a step a reader can count in — 0.5, 1, 2, 5, 10, 15, 30 or 45 degrees. So a map of Switzerland gets a degree grid and a map of the world gets a 45° one, and neither had to be asked for. step takes one number for both axes or [longitude, latitude].

The equator and the tropics are drawn apart from the grid, on --equator rather than --graticule, and the parallel set skips those three latitudes so none of them is ever stroked twice. A map that draws the Tropic of Cancer at the weight of 20°N is not marking it.

Each line carries data-kind — meridian, parallel, equator, tropic — so a theme can reach any of them:

.mp .mp-grid[data-kind="meridian"] { stroke-dasharray: 2 3; }

A parallel at the pole is not drawn: it is a point, and on a cylindrical projection it would come out as a line across the top of the map claiming the pole is a place.

Centring on a meridian

await masen({ region: "world", projection: "equal-earth", center: 160 });
await masen({ region: "world", projection: "orthographic", center: [100, 20] });

Overrides the automatic centring of the section above.

This is the projection's axis, not the middle of the canvas. fitExtent still frames the region wherever the rotation puts it, so what moves is how far the meridians fan, how much the map shears and which way is up — not where your subject sits on the paper.

It also beats the 180° rule, which is the point: a Pacific-centred world map is exactly the thing no automatic rule will ever hand you.

A latitude is taken only by a projection that turns in both axes — orthographic. Passing one to a cylinder or a cone throws, rather than quietly returning an oblique aspect, which is a different map rather than a recentred one.

Water is clipped to land

A river is one feature from its source to its mouth, so keeping the Danube because it passes through Austria keeps the whole of it — and it used to carry on across the sea to the Black Sea on every map of Western Europe. The hydro layer is clipped to the land actually drawn, which is also the truer statement: a river is on land.

Neighbours

await masen({ region: "west-europe", neighbours: true });

The surrounding countries, drawn beneath the region as context. Never labelled, never highlighted, and excluded from the camera — so turning context on cannot move your subject. Styled from --neighbour.

Marks

await masen({
  region: "west-europe",
  highlight: ["FR"],
  pins: [
    { at: [4.84, 45.76], label: "Lyon", kind: "site" },
    { at: [5.37, 43.30], label: "Marseille", offset: [0, 18] },
    { at: [9.99, 53.55], label: "Hamburg", id: "h1", offset: [-14, -4] },
  ],
});

A dot where the thing happened, and a word saying what it was. Pins render into .mp-annotations, above every geographic layer and below the furniture.

at is a coordinate, [lon, lat], and never a pixel. A pixel is only meaningful for the exact region, projection and canvas size that produced it, so a map reframed or resized detaches every mark placed in pixels. Where a mark is placed with a pointer, invert() is what turns the drop back into a coordinate to store. This is the shape arrows, callouts and icons will copy — they all have to say where, and they will all say it this way.

label sets text beside the mark; omit it and the pin is a mark and nothing else. id becomes data-id, which is how an editor finds the node it drew again. kind becomes data-kind for a theme to style — free text rather than an enumeration, because the icon vocabularies that will supply the conventional values have not landed yet. offset moves the label, in user units, never the mark: a negative dx anchors the text at its far end so it does not run back across the mark it was moved away from.

Marks are excluded from the camera, exactly as neighbours are. Placing one never moves the map out from under the marks already placed.

Two things can go wrong with a pin, and they get two different answers.

A coordinate on the far side of a globe is dropped. It has no pixel of its own, but it is handed one anyway — the far hemisphere projects onto the same disc as the near one, so a pin at 160°W lands squarely on Angola on an Africa-centred orthographic, and nothing about the markup would say it was wrong. They are caught by round trip: invert() answers with the near side by construction, so a coordinate that comes back as itself was visible and one that comes back as somewhere else was not.

A coordinate that survives that but lands outside the canvas is drawn, carrying data-fit="0". It is a real place the camera simply is not pointed at, and that is a fact about the map rather than an error — so the document states it and the stylesheet acts on it, the same bargain a name too big for its country gets. The bundled themes hide it.

A coordinate that cannot be one at all throws, and a latitude past 90 is told what it probably was:

masen: pins[0].at has a latitude of 102.35, which is outside [-90, 90] —
coordinates are [lon, lat], not [lat, lon]

The mark is --anno, cased in --label-halo — the same casing its label gets. The casing is not decoration: every bundled preset sets --anno to the same value as --accent, so a pin dropped on a highlighted country is drawn in the country's own colour, and a region plus a highlight plus a marker is exactly the map this layer exists to make.

Captions

await masen({
  region: "europe",
  pins: [{ at: [30.73, 46.48], label: "Odesa" }],
  callouts: [
    {
      at: [30.73, 46.48],
      text: "Grain exports resumed here in July, under a corridor agreement that lapsed in November",
      offset: [-96, -150],
      width: 190,
    },
  ],
});

A callout says where exactly as a pin does — same at, same guards, same data-fit. What differs is which half carries the meaning. A pin says there is something here and the mark is the subject; a callout says this sentence is about here, and the words are the subject while the line only points.

That is why a callout has a box and a pin does not. A single word can sit on a coastline behind a halo; a sentence cannot. The box is filled from --anno and the caption is set in --anno-ink — the one piece of text on the map drawn with no casing at all, because it already has a ground of its own.

offset places the corner of the box nearest the point, and the box grows away from there — so the sign of the offset is the direction the box goes, and the leader always lands on a corner you can predict. width is the widest the caption sets before it wraps (default 180 user units); the wrap is greedy, and a single word longer than the column is left long rather than hyphenated.

There is no mark at the anchor. The leader already ends there, and a caller who wants a dot as well adds a pin at the same coordinate — which is the composition the whole layer is built for, rather than a second way to draw one circle.

One caveat worth knowing. SVG cannot measure text outside a browser, so the box is sized from --label-advance and --label-track, which is an estimate. It rounds up by 30% — measured as the worst case a real caption runs across the bundled stacks — so a box is sometimes a little wider than it strictly needs to be. That is the right way round: a box slightly too wide costs whitespace, and a box too narrow prints the caption out through its own side.

Furniture, and the canvas

await masen({
  region: "world",
  credit: "Natural Earth · public domain",
  // or: credit: { text: "Reuters graphics", anchor: "bottom-left" }
});

.mp-furniture is the one layer that is not geographic. Everything in every other layer is somewhere on the ground and moves when the projection or the region changes. A credit line is on the paper: it belongs to one of nine canvas positions, in fixed user units, and stays there however the map beneath it is reframed.

top-left        top        top-right
left           centre           right
bottom-left    bottom    bottom-right

An anchor carries an alignment as well as a point, which is the half that is easy to forget: a credit anchored bottom-right is not text placed at the corner, it is text whose end sits there. Placed by coordinate alone, a long one runs off the canvas.

The inset is the map's own padding, so furniture lines up with the margin the map was already drawn inside rather than inventing a second one. Styling comes from --furniture-ink.

The credit deliberately does not appear in the accessible description. It says who made the map, which is not what the map is of — announcing it would put the byline ahead of the subject.

Nothing here is an obligation this library imposes: Natural Earth is public domain, Maki is CC0, and masen is MIT. credit exists because a map that leaves a browser as a file has no surrounding page to carry a caption, so the credit has to come out of the generator or it does not exist at all.

A scale bar and a north arrow, when the map has earned them

const map = await masen({
  region: ["FR"],
  projection: "conic-conformal",
  scaleBar: true,          // or { anchor, maxWidth, units: "km" | "mi", tolerance }
  compass: true,           // or { anchor, tolerance }
});

map.distortion();          // { scale, north, kmPerUnit, samples }

These two are the only furniture that makes a claim about the ground rather than about the map's provenance. A credit line cannot be wrong. A bar reading 500 km on a frame where 500 km is sometimes 80 units and sometimes 160 is simply false, and nothing in the markup says so.

So neither is drawn on request alone. The canvas is sampled — a few hundred probes through project and invert — and the piece appears only if the claim holds:

	claims	drawn when	default
scaleBar	one length means one distance everywhere	largest local scale ÷ smallest ≤ tolerance	1.1
compass	up is north everywhere	north leans ≤ tolerance degrees from up	5

The usual rule — "a scale bar suits the conformal and equal-area projections" — is wrong in both directions, and this library does not use it. Measured across the drawn frame:

region · projection	scale varies	north leans	gets
europe · mercator	2.76	0.0°	arrow only
west-europe · conic-conformal	1.03	22.3°	bar only
CH · mercator	1.05	0.0°	both
world · equal-earth	huge	64.4°	neither

Mercator is conformal and varies by nearly three to one over Europe, so the old rule would permit a bar that lies. Orthographic is neither family and varies by 1.07 over India, so the old rule would forbid one closer to true than the bar it just allowed. Honesty depends on the extent, not on the projection's family, and it is measurable — which is the same discipline the invert() round trip settled for annotations: measure the property, do not assert the category.

map.distortion() reports the measurement, so asking for a bar and receiving none is answerable with a number rather than a guess. It is computed on first call and kept, and a map that never asks never pays for it.

The bar's number is always a round one — 1, 2 or 5 times a power of ten — so the width is derived from the number rather than the number from the width. A bar reading 237 km is a bar nobody can step across a map.

What the map could not draw

const map = await masen({ region: "europe", detail: "110m" });

map.omissions();
// { absent: ["AD", "LI", "MT", "MC", "SM", "VA"], unseen: [] }

The same argument as distortion(), applied to a worse failure. A scale bar that declines to draw leaves a visible gap where you expected one. A country that is not in the detail tier leaves nothing at all — a map of Europe without the Vatican looks exactly like a map of Europe, and you cannot tell the difference between "this country is not in your region" and "this country is in your region and the map could not draw it".

absent is what this tier does not carry. Natural Earth's 110m file has 177 countries and its 50m file has 241, so europe at 110m names 45 and draws 39; south-asia names eight and draws seven, missing the Maldives. The cure is usually one word — detail: "50m" — which is exactly why it is worth saying.

unseen is what was drawn and cannot be read: a country whose longest side comes out shorter than the settlement dot standing on it, which is 6.4 user units. On a 960 × 620 map of Europe the Vatican is 0.2 × 0.1 units and Monaco is 0.8 × 0.7. Each one also carries data-unseen in the markup, and the bundled themes give those a stroke three units wide — the width of the smallest dot the library draws — so a country that had disappeared comes back at the size of the smallest mark already on the map and no larger. No geometry is invented; the polygon is the one Natural Earth supplies, drawn with a pen thick enough to see.

Both lists are empty for a world map, a bounding box or caller-supplied GeoJSON. None of those names a list of countries, so there is nothing to fall short of.

Watermarks

await masen({
  region: "africa",
  watermark: "PROVISIONAL",
  // or: watermark: { image: "./logo.svg", anchor: "bottom-right", width: 90 }
});

A watermark is attribution, not protection. It is a node in a file the reader can open, select and delete — it marks provenance and it cannot enforce anything. Nothing here is a rights mechanism, and a caller who needs one needs something other than a vector graphic.

An image is embedded, not linked: a data: URI passes through untouched, and under Node a path to a .png, .jpg, .gif, .webp or .svg is read and base64'd into the document. The whole point of this library's output is that one file is the whole map, and a watermark referencing a logo on disk would stop working the moment the SVG was emailed to anyone. The <image> carries a plain SVG 2 href rather than a duplicate xlink:href, which would double the payload of the logo to satisfy renderers older than about 2019.

You give a box, and the logo is fitted inside it — never stretched. The library has no way to measure an image's aspect ratio outside a browser, which is the same wall --label-advance exists to get around, so width and height bound the mark rather than setting it.

text and image are exclusive. A logo above a wordmark is a lockup, and a lockup's spacing and proportions belong to whoever owns the mark; pass the lockup as one image.

Styling is --furniture-ink at opacity: 0.18 — one CSS rule changes it:

.mp .mp-watermark { opacity: 0.4; }

Furniture does not dodge itself

The nine anchors are yours to assign, and nothing stops you putting a watermark and a scale bar in the same corner. The defaults are three different corners on purpose — credit bottom-right, scaleBar bottom-left, compass top-right, watermark centre — but there is no layout engine underneath them, and there is deliberately no auto-placement: where a mark of provenance sits is an editorial decision, not a packing problem.

Icons

import { ICON_NAMES } from "masen-map";

await masen({
  region: "west-europe",
  pins: [
    { at: [4.48, 51.92], kind: "harbor", label: "Rotterdam" },
    { at: [2.55, 49.01], kind: "airport", label: "Roissy" },
    { at: [-1.55, 47.22], kind: "flooding", label: "No icon for this" },
  ],
});

A pin's kind doubles as the icon name. There is no separate option, because the icon vocabulary's names are the conventional values for kind — that is what it was reserved for.

A kind that names no icon is not an error. It stays a plain mark and keeps its data-kind for a theme to style, so a category of your own invention goes on working. ICON_NAMES is exported if you want to check first, and isIconName() if you want to ask.

The sets are Maki and Temaki, both CC0 — public domain, no attribution obligation — plus two glyphs drawn for this library and dedicated to the public domain the same way. That is the whole reason they are the sets this library uses: anything under MIT or ISC would propagate a credit-line requirement into every map anyone generates, and quietly doing that to you is not something a map library should do. Nothing in your output credits anyone.

Forty-two icons, grouped by what a map is usually saying:

Movement and logistics	airport harbor rail ferry bus fuel bridge
Industry and energy	industry warehouse dam windmill construction
Civic and public	hospital police fire-station school bank embassy town-hall
Settlement	town city village
Land and landmark	mountain park lighthouse monument
Situation	danger roadblock shelter
Energy and extraction	oil natural-gas storage-tank mine power-station nuclear pipeline
Borders and conflict	military bunker camp border-crossing ruins conflict

Deliberately small: a vocabulary nobody can hold in their head is one where every author picks a different icon for the same thing.

The last two groups arrived by measurement rather than by drawing. Maki covers what sits on the ground and has none of oil, natural-gas, pipeline or mine, and this file said for six versions that the geopolitical half a news map runs on did not exist in any public-domain set and would have to be drawn. That was wrong. Temaki is an expansion pack for Maki from the iD/Rapid editor team, also CC0, and it carries most of that vocabulary already.

Two things about it are guarded rather than assumed, and both were found by rendering the candidates instead of reading their names. Its grid is not uniform — 485 of its 557 icons are 15×15 and the rest are drawn at 48, 50 or 100, so the vendoring script refuses anything that is not on the grid. And its line-drawn glyphs do not survive pin size: power_tower and wind_turbine are legible in a picker and turn to mush at the 15 units a pin actually draws, so what is vendored here is deliberately the solid half. Names were remapped on the way in, because Temaki names a file for the object drawn and this vocabulary is named for what a map is saying with it — lift_gate is a barrier arm, border-crossing is why anyone puts one on a map.

Two were still missing after that, and they are drawn here — in icons/, on the same grid, through the same checks, CC0. pipeline is a pipe with two flange collars and a valve wheel, because Temaki's pipe is a tobacco pipe and the elbow-with-flanges alternative read as the letter L at pin size. conflict is the starburst every news desk uses for fighting or a strike — twelve points with the inner radius varied, because the regular eight- and ten-point versions rendered as a badge star beside military. Both were chosen by rendering the candidates at pin size next to the vendored sets, not by looking at them large.

The glyph is inked from --anno-ink on a mark filled with --anno, and the mark grows to hold it. The path is inlined into each pin rather than referenced from a <symbol>: a <use> puts its content in a shadow tree, where a class-based fill is unreliable across renderers and unreachable by the flattening pass — and the flattened form exists precisely for the reader that ignores stylesheets.

Connections

await masen({
  region: "europe",
  arrows: [
    { from: [30.73, 46.48], to: [-3.7, 40.42], kind: "grain" },
    { from: [30.73, 46.48], to: [12.5, 41.9], bow: -0.18 },
    { from: [30.73, 46.48], to: [21.0, 52.23], bow: 0 },
  ],
});

Trade, migration, supply lines. The first primitive with two coordinates rather than one, so the guards a pin's at gets are applied twice — and an arrow with either end on the far side of a globe is dropped whole. Half an arrow is not a partial answer; it is a line pointing at somewhere the reader was never told about.

bow is how far the curve leaves the straight line, as a fraction of the distance between the ends. Its sign is the side it bows to, which is how you get an arrow off a coastline or out from under a second arrow running the other way. 0 draws a straight line — a real L, not a curve that happens to be flat. It is a curve by default because two places on a map usually have something between them, and a straight chord runs through whatever is in the way and reads as a border or a route.

Arrows are drawn beneath pins and callouts, because a connection is context for the things it connects rather than the other way round. data-fit="0" needs both ends on the canvas: an arrow whose destination is off the map has not said where it goes.

The head is an SVG <marker>, which is markup rather than a declaration — so it lives in the defs block and the theme names it, exactly as the relief filter and the hatch pattern do. It is styled through .mp-arrow-head rather than inherited from the arrow, because a marker resolves colour where it sits, in the defs block, and not where it is used.

Routes

await masen({
  region: ["SE", "NO", "FI"],
  routes: [{
    label: "Stambanan genom övre Norrland",
    stops: [
      { at: [18.06, 59.33], label: "Stockholm" },
      { at: [17.31, 62.39], label: "Sundsvall" },
      { at: [20.22, 67.85], label: "Kiruna" },
      { at: [17.42, 68.44], label: "Narvik", kind: "minor" },
    ],
  }],
});

A line through a list of places with a ring at each — a rail line, a march, an itinerary. Nothing in it is new except the ordering, which is the part that carries the meaning: a reader follows a route, and following needs a sequence. A stop is a pin by another name (at, label, offset, kind all mean what they mean there), and a leg is an arrow without a head.

kind: "minor" draws a smaller ring, which is how a branch reads as a branch rather than as a second main line. marks: false leaves the bare line. The route's own label becomes its <title> and part of the map's description.

A stop the camera cannot see breaks the line rather than being threaded past. Skipping it would draw a leg between two places that are not next to each other — on a globe, a chord straight through the planet — and a route that claims a journey nobody makes is worse than a route with a gap in it. So the line is one path of several subpaths, one per visible run.

A route is not a road. A road is a fact about the world that has to arrive from Natural Earth; a route is a claim you are making. That is why routes are annotations and .mp-roads is still an empty layer.

A pressure chart

await masen({
  region: "europe",
  pressure: {
    centres: [
      { at: [-18, 60], value: 976, stretch: 1.6, angle: 60 },
      { at: [-22, 40], value: 1032, radius: 1600 },
    ],
    shading: true,
  },
});

You place the lows and the highs; the library draws the chart. Each centre pulls a 1013 hPa baseline down or up around itself, fading with distance on the ground — radius in kilometres (default 1200), stretch and angle for the elongated low a real chart has — and the sum of them is a field. Isobars are its contours every interval hectopascals (default 4, the synoptic convention), with the value written along each line long enough to carry one. Two centres near each other make a trough or a ridge between them because the field is a sum, not because anyone drew one.

Nothing is downloaded and nothing is measured. There is no pressure anywhere in Natural Earth, and this is not a forecast: it is an illustration of a weather situation, and the same centres always draw the same chart.

The isobars are in .mp-weather, over the land and under the names. The H and L marks are .mp-pressure groups in .mp-annotations, a .mp-pressure-mark letter over a .mp-label[data-kind="pressure"] value, since they are a place you chose rather than context. The value is the chart's pressure at the letter, not the number the centre was given: two lows of 1000 placed close together deepen each other, and printing 1000 inside the 988 ring round them would be a chart contradicting itself.

mark: false on a centre shapes the field without a letter — a trough or a ridge, which a chart draws and never names, or a system beyond the edge of the map whose isobars still reach into it.

shading: true tints the ground between the lines: toward --pressure-low wherever the chart is under 1013 hPa and --pressure-high wherever it is over, deeper in eight steps (data-depth) that stretch as they go — 1.5, 3, 5, 8, 12, 18 and 26 hPa from normal — so a tropical low 3 hPa under normal is as plainly tinted as a typhoon's core is dark. Only a band with 1013 inside it is left bare.

wind: true draws the surface wind the field implies, as an arrow on a grid across the map: along the isobars, anticlockwise round a low north of the equator and clockwise south of it, turned about 20° toward the low as friction does near the ground, and longer where the lines crowd. Each .mp-wind carries its speed in knots as data-speed, and calm ground gets no arrow. The speed is the gradient wind rather than the geostrophic one — it knows how sharply the isobars curve as well as how tightly they crowd, which is the difference between a typhoon of 70 knots and one of 400 — and it is held at its 15° value nearer the equator, where the balance it comes from stops holding. The bands never overlap, so they can be translucent and the coast still reads through them. It is off by default, because a synoptic chart is lines.

Cities

Settlements are ranked 1–3: capitals and the largest cities, then everything over a million, then the rest. placeRank decides how far down to draw (default 2 — which on Western Europe means the thirteen capitals plus Milan, Hamburg, Munich, Lyon, Marseille, Turin and Barcelona). Every dot also carries data-rank, so a theme can thin them further with one CSS rule.

Names

Country and settlement names, on by default.

await masen({ region: "west-europe", theme: "atlas" });     // names included
await masen({ region: "west-europe", labelRank: 2 });       // name more cities
await masen({ region: "west-europe", layers: { labels: false } });  // none

labelRank decides how far down the settlement ranking to name the dots that are drawn — it defaults to 1, one step tighter than placeRank, because a dot is a mark and a name is a word. Countries are not ranked by you: a country is named if its name fits inside it, which is a fact about the map, not a setting.

What placement actually does. There is no label-placement solver here, and this is the honest limit of drawing a map as an SVG. What there is:

• The anchor is the balance point of the largest piece of the country that is on the canvas — not the centroid of all of it, which puts "France" in the Atlantic because France's geometry reaches French Guiana. When that point falls outside the country, as it does for every crescent and every Croatia, it is replaced by the point furthest from any edge.
• A name that does not fit is set over two lines at the most even break — which is what rescues United Kingdom, South Korea and Papua New Guinea.
• A country name steps clear of its own capital's name, one line up or one line down, and only if the step keeps it on the country. A capital usually sits near the middle of its country, which is exactly where its country's name goes; without this, "Madrid" runs through "Spain" on every map.
• Whatever still overlaps is hidden. Names are laid down in order — the countries with room to be named first, then settlements in the order the data ranks them — and anything landing on one already placed is marked data-fit="0". Nothing is moved twice and nothing is retried. The world has some two hundred capitals and a world map has room for about thirty, so the only question is which thirty.

Nothing is ever dropped from the document. Every name is written out, and data-fit="0" is hidden by a stylesheet rule you can turn off:

.mp .mp-label[data-fit="0"] { display: revert; }   /* show every name */
.mp .mp-label[data-rank="3"] { display: none; }    /* drop the cramped ones */
.mp .mp-label[data-kind="place"] { display: none; } /* countries only */
.mp .mp-label[data-capital] { font-weight: 600; }

Every label carries data-kind — country, place, sea, or pin, route and callout from the annotation layer — plus data-rank 1–3 and data-iso. For a country, rank is how comfortably the name fits: 1 has room to spare, 3 overhangs. For a settlement it is the same rank the dot carries.

The fit test has no font metrics — SVG offers no way to measure text outside a browser — so it estimates width from an average glyph advance and reads --label-size and --place-label-size out of your resolved stylesheet. Change those tokens through tokens: and the fit test follows; change them in a write-time override passed to render() and it cannot, because the geometry is settled by then.

The limitation that remains: two country names can still overlap on a very crowded map, and a settlement name can cross a border it does not belong to. Ranks exist so a theme can thin its way out of both.

Names in another language

The bundled data is English. names replaces the name of anything the map labels — keys are ISO codes for countries and settlement names for cities:

await masen({
  region: "west-europe",
  names: { DE: "Deutschland", FR: "Frankreich", Munich: "München" },
});

The new name is the map's name for that feature throughout: the label, the data-name attribute, the hover title, and the accessible description. There is no language: "de" option, because it would need name tables this package does not ship.

Choosing layers

await masen({ region: "west-europe", layers: { borders: false } });

This empties .mp-borders; it never removes the group. The stack is a fixed contract, and a document whose shape depends on its options is one no theme can be written against. The saving is file size, not appearance — hiding a layer is one CSS rule, but not emitting its path data is real bytes.

Scripts

npm run check	typecheck → test → build → verify exports
npm run fetch:data	download and vendor the Natural Earth sources no package carries
npm run build:data	build data/ from vendor/ and the source packages
npm run build	dual ESM/CJS bundle plus types
npm test	vitest; snapshots land in test/__snapshots__/ as real .svg files you can open
npm run dev	rebuild on change

The gallery

test/__snapshots__/gallery/ holds committed renders across themes, palettes, projections and canvas shapes, including one map of every continent. They are snapshots, so a diff fails the build — but they are real .svg files, so a diff is also something a person can open. That matters twice over: Phase 2 shipped a map that rendered as a solid black square while every string assertion passed, and Phase 3 first shipped this gallery in a form that only renders where <style> is honoured. Every file here is now checked to carry visible paint with its stylesheet stripped out.

npm run gallery   # → gallery.html, every snapshot on one page

A directory of forty-two SVG files is not something anyone opens either, so npm run gallery builds a contact sheet: all of them inline, in the browser, at a size where a flat choropleth or a black square is obvious at a glance. What each map is said to demonstrate is read back off the markup rather than off the test that wrote it, so the page cannot claim a feature a file does not contain. The output is untracked — three megabytes of inline SVG is a diff nobody can read, and the snapshots are the tracked thing.

One detail worth knowing if you put several maps in one page yourself: the stylesheets are safe, because each is scoped to a hash of itself, but the SVG ids are not — mp-land-clip, mp-stripe and mp-relief are constants, so every url(#…) resolves to whichever map came first. The gallery builder namespaces them per map; anyone embedding two maps on a page has to do the same until that is fixed.

Which kinds of water

Lakes and rivers both draw by default. water narrows that, the way terrain selects cover kinds:

water: false        // no lakes, no rivers
water: ["lake"]     // lakes only

It is separate from layers.hydro on purpose — layers decides whether a group renders at all, water decides what goes in it — and the two are not a contradiction when both say no. Rivers are the kind worth dropping: at small scale a river and a border are both thin lines, and a reader who cannot tell them apart is worse off than one who sees neither.

Contested borders

The country geometry this library draws resolves disputed territory de facto, and it did not choose to. Crimea falls inside Russia, not Ukraine — Simferopol at 34.10°E, 44.95°N is inside feature 643 at every tier shipped here. That is inherited from world-atlas, and through it from Natural Earth's default country layer. Nobody picked it; it arrived with the data.

Left alone, that makes the map assert something contested in this library's own voice, without being asked and without saying so. The readers this is built for are newsrooms, and a journalist who draws Ukraine and does not zoom in would be publishing a position they never took and were never told about.

So disputed and breakaway areas are drawn as a hatched overlay, on by default. The overlay marks the contested edge rather than resolving it:

const map = await masen({ region: ["UA"] });   // Crimea is hatched
const bare = await masen({ region: ["UA"], disputed: false });

Twenty-eight areas from ne_50m_admin_0_breakaway_disputed_areas, each drawn as .mp-hatch carrying data-kind — disputed, breakaway or indeterminate — and data-name. Crimea, the Golan Heights, Western Sahara, Northern Cyprus, the Kashmir claims, Abkhazia, South Ossetia, Transnistria, Artsakh, Somaliland, the Ukrainian breakaway oblasts and the Kuril Islands are all in it. Each carries a <title> with Natural Earth's own status line — Crimea's reads "Admin. by Russia; Claimed by Ukraine" — quoted rather than composed here, because saying who claims what is not this project's sentence to write.

Three limits, stated rather than left to be discovered.

• 110m is derived, not downloaded. Natural Earth publishes no 110m breakaway file — it 404s — so the coarse tier is emitted from the 50m geometry, the same way land cover borrows its classification from 10m. The areas are finer than the country outline beneath them there and can overhang a coarse coastline. That is a smaller error than a coarse map resolving a contested border in silence, which is what it did before.
• Hatching is not reassignment. Crimea is still filled as Russia underneath. Reassigning needs Natural Earth's point-of-view country layer, which is 10m-only and 13.2 MB. The overlay says the border is contested, which is the part not in dispute; it does not say who is right.
• This is a position, not neutrality. A library that ships a default has taken one whether it admits to it or not, and the previous default was taken by accident. Choosing on purpose and saying so is the most that can honestly be claimed here.

License

MIT — see LICENSE.

A map made with this carries no attribution obligation, and that is deliberate. The users this is built for are publishers, so the geometry was kept on public-domain sources on purpose rather than by luck.

What	Source	Licence	Attribution
Country polygons, coastlines	Natural Earth via world-atlas	Public domain / ISC	None
Lakes, rivers	Natural Earth via sane-topojson	Public domain / MIT	None
Populated places	Natural Earth, vendored under vendor/	Public domain	None
Land cover — desert, mountain, glacier	Natural Earth, vendored under vendor/	Public domain	None
Sea and gulf names	Natural Earth, vendored under vendor/	Public domain	None
Projection maths	d3-geo	ISC	None
Topology decoding	topojson-client	ISC	None
Pin icons	Maki by Mapbox, vendored into src/icons.ts	CC0-1.0	None
Pin icons	Temaki by the iD/Rapid editor team, vendored into src/icons.ts	CC0-1.0	None
Pin icons	pipeline and conflict, drawn for this library in icons/	CC0-1.0	None

d3-geo and topojson-client are ordinary dependencies rather than bundled into dist, so their own licence files arrive with them and their terms are satisfied without this package restating anything. Maki and Temaki are CC0 and vendored, because 42 inlined path strings is cheaper than two dependencies. The Natural Earth extracts under vendor/ are committed rather than fetched, which is why npm run build:data needs no network — and why a publish does not either.

If a source that does require attribution is ever added — Eurostat GISCO or OpenStreetMap are the two that would tempt it — the credit has to be rendered by the emitter rather than left to the caller, because the person downloading an SVG from a browser has nowhere else to put it.
